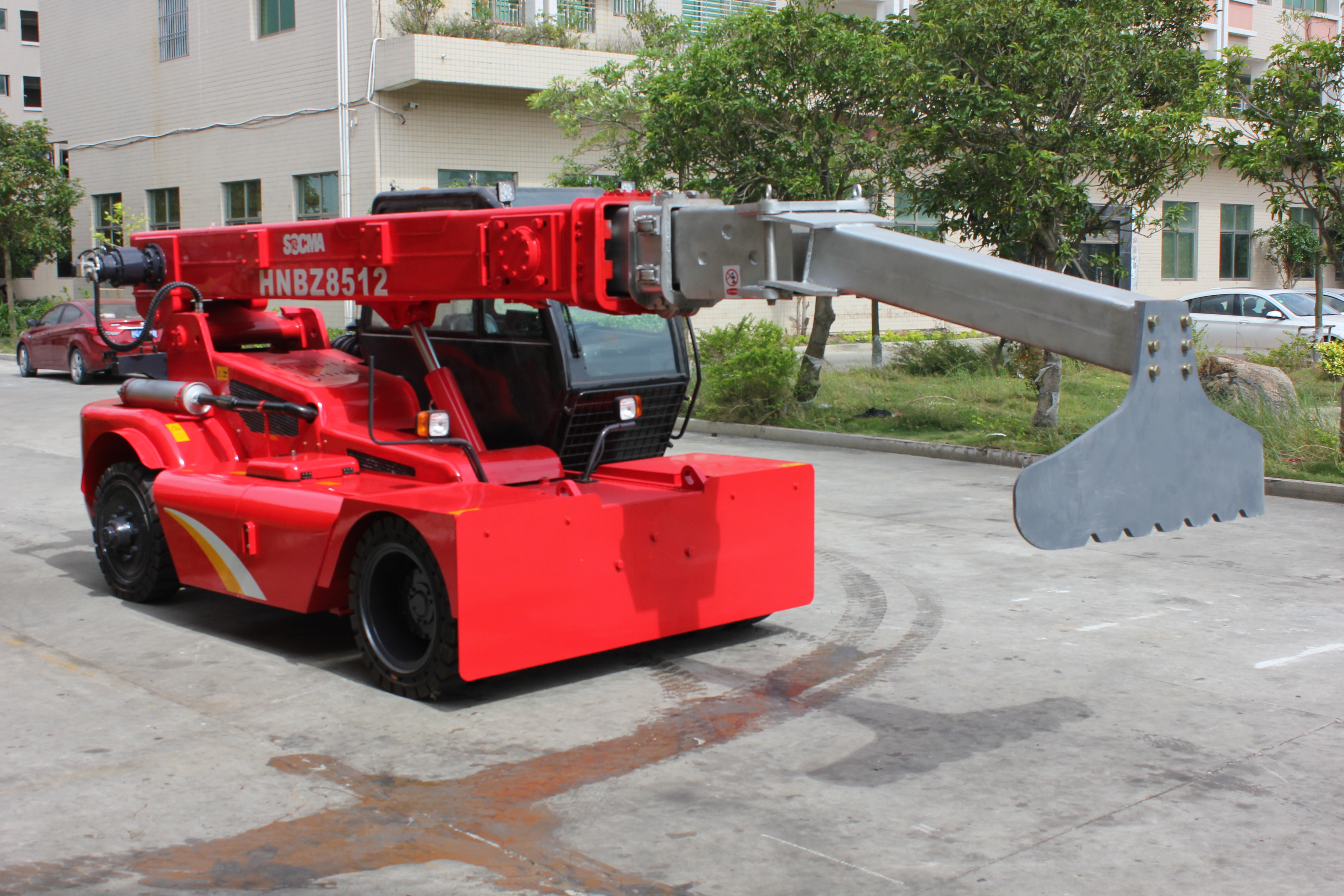

铝业车辆系列

首页 > 产品中心 > 铝业车辆系列


  • 产品特点

  • 详细参数

  • 可选部件
性能Performance参数Specifications
基本参数Basic parameter全长(臂架全部缩回)Overall width(The boom is fully retracted)7100 mm
基本臂长Basic boom length4490 mm
最长臂长(全部伸出 )Max.boom length(Fully extended)13000 mm
宽度Width  2340 mm
高度Height驾驶室高度  Cab height2360 mm
最大提升高度时的全高 Max lifting height at full extension of the boom3200 mm
最小离地间隙             Min.ground clearance160 mm
最大外伸距Max.extension8600 mm
最小外伸距Min.extension2600 mm
轴距Wheelbase3000 mm
轮距Wheel tread前轮  Front1640 mm
后轮  Rear1630 mm
最小外侧转弯半径 ≤105%Min.outside turning radius≤105%7000 mm
接近角  Approach angle20 °
离去角  Deapature angle15 °
变幅仰角Range elevation 臂架最大仰角  Max.elevation angle of boom7 °
臂架最小仰角 Min.elevation angle of boom-12 °
整机质量Truck weight 11000 kg
扒渣力Slag removing force水平 ≥90%Level≥90%10 kN
垂直 ≥90%Vertical≥90%10 kN
发动机Engine型号ModelQSB3.9-C100-31
额定功率/额定转速Rated power/rotate speed74kW/2400 rpm
最大扭矩/转速Max.torque/rotate speed330N.m/1400~1600 rpm
传动系统Transmission system传动方式 Transmission way动力换档、定轴式、液力传动Power shift, fixed-axis type, hydraulic transmission
档位(前进/后退)Gear (forward / backward)2/1
最高行驶速度Max.travelling speed28km/h
最大牵引力 ≥90%Max.drawbar pull≥90%30kN
爬坡度  Gradeability15%
油箱容量Oil tank capacity液压油箱容量  Hydraulic oil tank capacity230L
燃油箱容量Fuel oil tank capacity230L
制动系统Brake system驻车制动 Parking brake手动涨蹄式制动器Hand expanding shoe type brake
行车制动Travelling brake气顶油盘式制动器Gas cap oil brake
制动系统气压Brake system air pressure0.684-0.785 MPa
液压系统Hydraulic system液压系统压力 Hydraulic system pressure18MPa
先导系统压力Joystick system pressure0.30MPa
伸出/回缩速度  Extend / retract speed1150/1100 mm/s
上仰/下俯速度  Up / down speed3/3°/s
转向系统Steering system转向型式 Steering type全液压负荷传感转向系统Fully hydraulic load sensing steering system
系统压力system pressure14MPa
轮胎Tyre前轮(前轮4个,实心橡胶轮)Front tyre (front tyre 4, solid tyres)8-20
后轮(后轮2个,实心橡胶轮)Rear tyre (rear tyre 2, solid tyres)8-20
